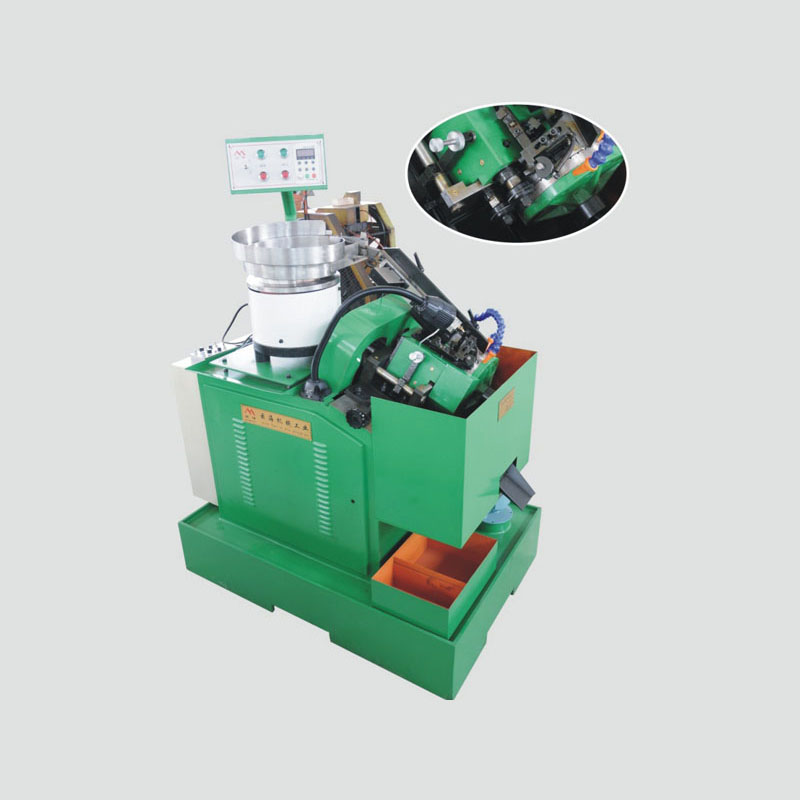

Burr-free hex head screw directional milling machine

無毛刺外六角螺釘認向銑槽車 Burr-free hex head screw directional milling machine
性能 Function	雙刀對銑具備無毛刺 Burr-free double cutter milling
	六角頭部能自動定位可對邊銑槽 Hex head can be automatically positioned, and supports edge grooving
	按需型體震動料抖送料技術 On-demand vibration-based material feed technology
\	可變頻調節自由進給 Adjustable variable frequency, free feed
機型 Model	ZX3-8
凈重 Net weight	520KG
主電機 Main motor	0.75KW 1.10KW
外觀尺寸 External dimensions	1100mm X 750mm X1250mm
每分鐘生產量 Production capacity per minute	40只-100只 40 units-100units
銑槽刀規格 Milling cutter specification	外徑Φ45mm-Φ50mm 內孔徑Φ16mm 厚度 0.4mm-3.0mm External diameter Φ45mm-Φ50mm Inner bore Φ16mm Thickness 0.4mm-3.0mm
可加工產品范圍 Machinable product range	外徑Φ2.5mm-Φ10mm 六邊對邊5mm-16mm External diameter Φ2.5mm-Φ10mm Across flats 5mm-16mm
