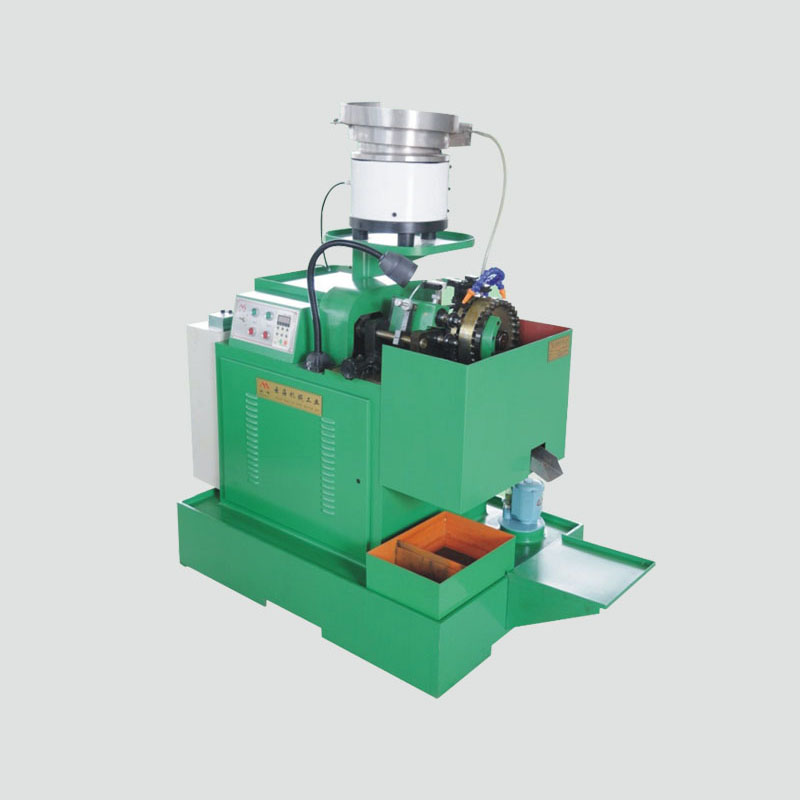

Burr-free headless set screw milling machine

Burr-free headless set screw milling machine
性能 Function	雙刀對銑具備無毛刺 Burr-free double cutter milling
\	無頭螺釘兩端可按需定向 Headless screw, threaded on both ends as required
\	可變頻調節自由進給 Adjustable variable frequency, free feed
\	\
機型 Model	ZX3-8
凈重 Net weight	595KG
主電機 Main motor	0.75KW 1.10KW
外觀尺寸 External dimensions	1100mm X 750mm X 1250mm
每分鐘生產量 Production capacity per minute	30只-250只 30 units-250 units
銑槽刀規格 Milling cutter specifications	外徑Φ45mm-Φ50mm內孔徑Φ16mm 厚度0.4mm-3.0mm External diameter Φ45mm-Φ50mm; Inner bore Φ16mm Thickness 0.4mm-3.0mm
可加工產品范圍 Machinable product range	外徑Φ2.5mm-Φ10mm 桿長度5mm-16mm External diameter Φ2.5mm-Φ10mm Shaft length 5mm-16mm
